small workpiece

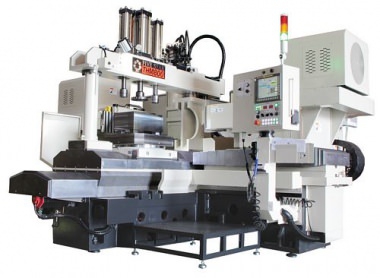

NC Vertical Milling Machine
Multi-style cutting condition function setting
Using Fanuc 0i-MF system and touch screen
Simple operation, prevent mistakes。
規格(皮帶頭)
規格(gearwheel)
規格(belt)
主軸直徑
Spindle diameter
Ø 100mm / BT50 equivalent
主軸端面
Shape of spindle nose
主軸轉速
spindle speed
旋轉工作台
Index table
X軸行程
Travel X axis
Y/Z軸行程
Travel Y/Z axis
主軸至工作台中心距離
Distance from spindle center
85-535mm
兩主軸間距離
Distance between Y/Z spindle nose
工作檯面至主軸中心距離
Distance form table surface to spindle center
工作台分割角度
Indexing degree of table
最大載重量
Table loading capacity
工件最大加工範圍(L*W*H)
Cutting capacity Max
四面加工
800x800x300mm
800x800x230mm
工件最小工件範圍(L*W*H)
Cutting capacity Min
100x100x20mm
倒角範圍
Camfering size
銑刀規格
Cutter diameter
快速押送(X,Y,Z軸)
Rapid feed X/Y/Z
10x8x8 m/min
切削進給速度
Cutting feed speed (Auto)
手動進給
Cutting feed speed (Manual)
機械佔地面積(寬x長x高)
Installation space
1.FANUC 0I-MF系統+觸控螢幕+人機對話系統 2.旋轉工作檯 x 1式 3.螺旋式自動清屑裝置 4.工具一式 5.半罩式板金 6.壓棒圓盤 7.工件測定裝置 8.工件定寸裝置 9.鐵屑吹氣裝置 10.照明裝置 11.三色指示燈
1. Designated machine color
2.spindle cooling system
3.Full cover (CE)
4.QR-CODE
5.transformer power supply
